Kit
Models |
BB-24 |
BFP-24
|
BFP-24 |
 |

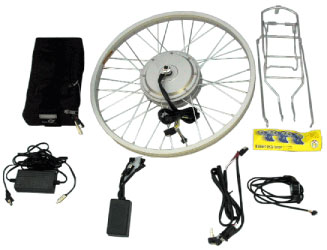

Basic Brushed Motor, Motor mounted in wheel, momentary button throttle, battery pack, smart charger, bike rack |
Brushed Motor Full-Package, Motor mounted in wheel, lighted thumb throttle, controller unit, battery pack, smart charger, bike rack. |
Brushless Motor Full-Package, Motor mounted in wheel, lighted thumb throttle, controller unit, key switch, battery pack, smart charger, bike rack. |
Hub Motor
|
540 Watt, 24 Volt DC Gearless, Brushed, This motor has no moving parts, the motor itself spins around the center bearing, which is where the wheel mounts on the front forks of your bicycle. | 540 Watt, 24 Volt DC Gearless, Brushed, This motor has no moving parts, the motor itself spins around the center bearing, which is where the wheel mounts on the front forks of your bicycle. | 400 Watt, 36 Volt DC Gearless, Brushless, This motor has no moving parts, the motor itself spins around the center bearing, which is where the wheel mounts on the front forks of your bicycle. |
| Throttle Type | Throttle Type
|
Variable Speed Throttle
|
Variable Speed Throttle
|
| Key Switch | None | Key Switch | Key Switch |
Battery Pack
|
Sealed, 12 Volt DC, 12 Amp Lead-Acid Gel-Cell Batteries (x2)
|
Sealed,
12 Volt DC, 12 Amp Hour Lead-Acid Gel-Cell Batteries (x2) |
Sealed, 12 Volt DC, 7 Amp Hour Lead-Acid Gel-Cell Batteries (x3) - optional 12 Amp Hour Batteries (x3)
|
| Electronics | None | Electronic Speed Controller Unit | Electronic Speed Controller Unit |
| Wheel Sizes Availability | 16, 20, 24 or 26 inch Front Tire with Front Wheel Drive | 16, 20, 24 or 26 inch Front Tire with Front Wheel Drive | 16, 20, 24 or 26 inch Front Tire with Front Wheel Drive |
| Top Speed | 20+ mph | Top Speed: 20+ mph | Top Speed: 20+ mph |
| Range | Average Range (Distance) per Charge: 15+ miles | Average Range (Distance) per Charge: 15+ miles | Average Range (Distance) per Charge: 20+ miles (30+ with extended battery pack) |
| Charger | Automatic Smart Charger: 1.5 Amp@24vdc
|
Automatic Smart Charger: 1.5 Amp@24vdc
|
Automatic Smart Charger: 1.5 Amp@36vdc
|
| Average Recharging Time | 4-6 hours | 4-6 hours | 4-6 hours |
| Payload | Payload Capacity: 300+ lbs. (U.S. Pounds) | Payload Capacity: 300+ lbs. (U.S. Pounds) | Payload Capacity: 300+ lbs. (U.S. Pounds) |
| Weight | Gross Weight of Kit: 36 lbs | Gross Weight of Kit: 36 lbs | Gross Weight of Kit: 36 lbs |
| Features | The simplest, most reliable, least inexpensive electric bike kit on the market. Press the momentary button switch to engage the motor, release it and the electric power shuts off. You can pedal along with the motor, or not. | The same motor as the BB-24 with the added features of a variable speed, lighted thumb throttle, and an electronic speed controller with a power on/off key switch. | Brush-less
motor, meaning you will never have to change the brushes inside it. Brushless
motors are more power-efficient than brushed motors, and this one will increase
your range by 20 % compared with a similar power-rated brushed hub motor.
This motor runs on 36 volts instead of 24 volts, so even though it is rated
at 400 watts (continuous power output - 750 watts peak output), it has the
same top-end speed as the BB-24 brushed motor Extended Battery Packs Also Available -12 Amp Hour Batteries (x3) (adds 12 lbs. to kit) |
|
Model
#500W - Series Hub Motors |
 |
SUBSET

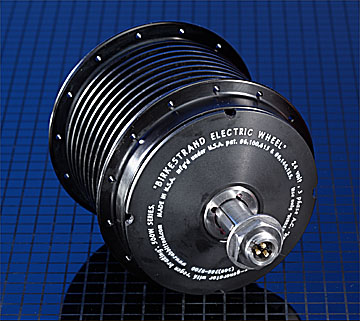

#1100 Electrical input only. Dual shaft mounting for wire spoked bicycle front wheel type applications. Wheel sizes from 16" to 28" O.D. Note: THIS SUBSET REQUIRES AN EXTRA WIDE FRONT FORK. Item # 9 - HUB Motor for 26” spoked bicycle front wheel......$200. 24 volt, 3 phase a.c., P/N 500W.S36.D26.N0.4S.L.1100 |
|
|

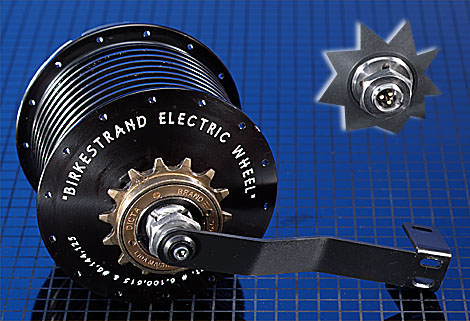

SUBSET
#1125 Geared
Hub Motor Assemblies with integral plug (one Req’d) |
 |
SUBSET
#1150 Item
# 11 - HUB Motor for 20” spoked mono shaft mounted wheel......$245. |
 |

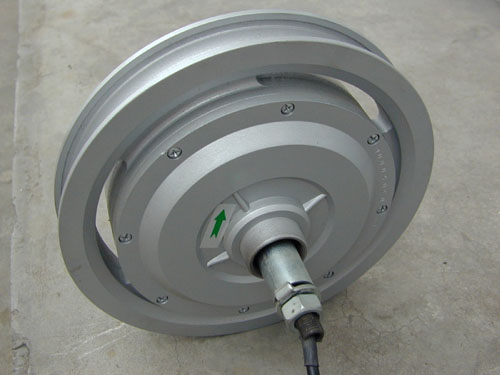

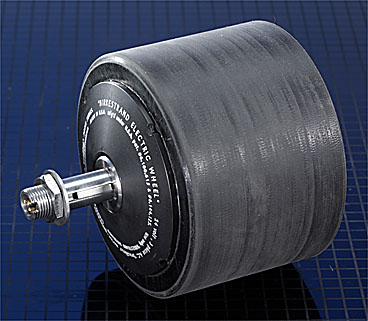

SUBSET #1175 Electrical input only. Mono shaft mounting for molded wheel assemblies for bicycle, tricycle & quadricycle type applications. Wheel sizes from 5" to 24" O.D. Item # 12 - HUB Motor & molded Rim for 8” dia mono shaft mounted wheel...$275. 24 volt, 3 phase a.c., P/N 500W.M3.M8.N0.4S.H.1175 |
 |

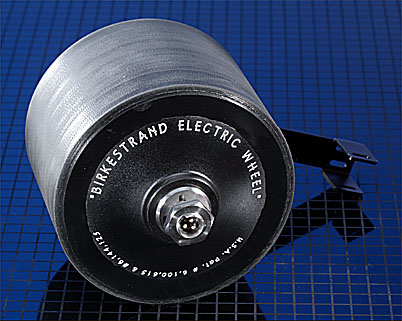

SUBSET #530 Electrical input only. Dual shaft mounting for molded wheel assemblies for scooter & bicycle type applications. Wheel sizes from 5" O.D. to 24" O.D. Item
# 10 - Hub Motor & 5” Dia. Tire for Kick Scooter......$235. |
 |

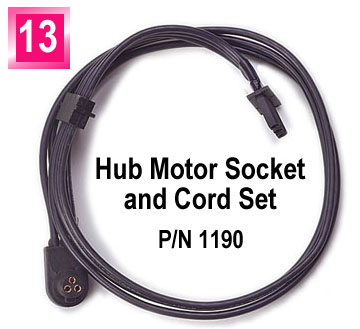

Item
#13 - Hub Motor Socket & cord Set,
P/N 1190...... This little motor socket and cord set with molded strain relief and crimp-on plug doesn't look like much, but we spent eons of time and gobs of cash designing and perfecting it. It has to: 1) be easily, reliably and repeatedly connected and disconnected from the integral plug motor shaft, possibly in bad weather in the dark of night, in order to quickly dismount the wheel; 2) be an extremely compact right angle high current electrical connection; 3) be able to survive repeatedly being bumped, hit and twisted and 4) be able to operate coolly often at high current loadings in all types of weather. It does this and it is available in stock lengths of 5", 19" and 25"; custom lengths can be made to suit your application. |
 |

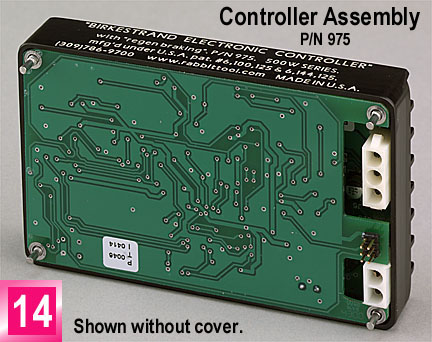

Item
#14 - Electronic Controller Ass’Y
with heat sink case, P/N 975......$175. Our compact custom designed patent pending electronic controller with its integral plugs and heat sink is truly unique, as it is the only one anywhere featuring an infinity speed adjustable, precision closed-loop motor torque control with full regenerative braking of a three phase A.C. brushless sensorless motor-generator. The regenerative electric brake function is all weather and it can in most cases replace the mechanical brake. This masterpiece, invented and personally designed by one of the most famous and creative electronic designers in the U.S.A. just for our Electric Wheel, is truly hi-tech state of the art and is not only more powerful in the generator mode than the motoring mode, but it is also more efficient! It is exclusively match designed to work with our 500W Series Hub Motors & battery packs; attempting to use it with other motors or battery packs instantly voids all warranties and may well destroy it. However, should you manage to electronically "destroy" it by whatever means, we offer a service to fix all repairable units for a flat fee of $100 USD: |
 |
Item
#15 - Electronic throttle Ass’Y with
cord & plug, P/N 1015......$49.
Our unique patented (U.S.A. # 6,144,125 plus other pending) electronic throttle looks to be the picture of simplicity, and it is; but, we are embarressed to say how many complete redesigns, heaps of scrapped out protype parts and cold cash we spent perfecting this now simple reliable device. First of all, it clamps onto a standard 7/8" diameter bicycle or scooter handlebar and takes the place and position of the normally right side mounted derailleur twist grip. Basically, it is a torsion spring balanced two way twist grip device with an integral off switch at the home position, with multicolor smart LED's for operator information. After you have pedaled or pushed the vehicle (a unique safety feature of this design) up to 2-3 mph, turning the twist grip counter-clockwise accelerates the vehicle; releasing the grip allows the vehicle to coast and twist grip to return to its home position; turning the grip clockwise at any time, turns the hub motor into a generator and you get progressive regeneration or electric braking, efficiently putting energy back into the batteries. One nifty, but easily taken for granted feature of the design, is that actuating the electric brake at any time automatically shuts off the motoring as the hub motor-generator is either one or the other; it can not simultaneously be both, no matter what condition or age of the vehicle. When the motor device is a seperate structure from the braking device as in other designs, this safety feature cannot always be taken for granted as parts wear, maintenance is neglected and people forget to tend to it. Highly intuitive, this throttle is quickly mastered and appreciated by new riders as it eliminates the skills necessary to master gear shifing; one merely twists and goes or brakes; you don't even have to remember to turn it off, as even this is automatic. This throttle is specifically designed to be used only as part of our #500W System; any other use instantly voids our warranties and it is not recommended. |
 |

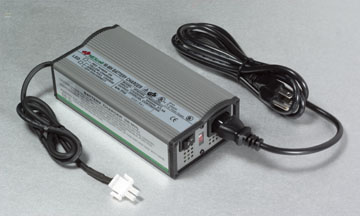

Item
#3 - NiMH Smart (2 Hr) Q-Charger, 24 Volt,
4 Amp D.C. P/N 925......$105. This 4 Amp
D.C. Smart Q-Charger is specially designed to safely and quickly (Q) recharge
our our 24 Volt NiMH battery packs in two hours or less; automatically
sensing the packs' voltage, it adjusts its current (AMP) output accordingly
and later automatically shuts itself off when the pack is fully recharged.
Equipped with a smart LED that indicates charging condition, it is safety
fused and comes with the most common agency approvals. In addition, it
has a switch for either 110 or 220 Volt A.C. (50 or 60 Hz) supplies and
a wide variety of International A.C. input cords are available. Use only
Rabbit Tool U.S.A. approved battery chargers to recharge our battery packs
as failure to do so will instantly void all our warranties, may destroy
your battery pack, the controller and possibly cause bodily injury &
or property damage as well as possible fire and explosion. For most people,
topping off the battery pack with this Q-charger during lunch hour is
enough to get them where they need to go. |
| Item #4 - Solar Charger (2 Hr) with case & plug, 24V, 100W, P/N 825......$695. | |
 |

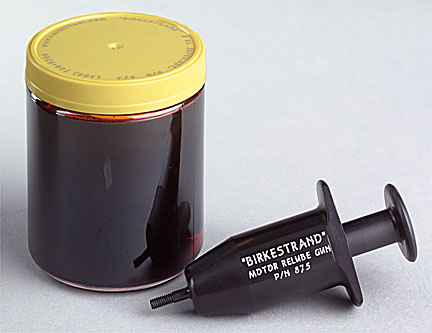

This motor
relube gun is specifically designed to inject Superlube into our geared
hub motor assemblies; our Superlube not only lubricates the gears and
bearings but also transfers heat from the stationary inner motor stator
windings to the outer rotating shell which is in turn cooled by the free
air stream. You will not need it very often, but we recommend one with
each EX-Bike. |
 |
Battery
Pack Styles Link: Click Here |
 Add
Electric Power To A Bike You Already Own. |
Rear
wheel hub motor
with accommodation for 7 speed gears
(available upon request.) ***
|
HIGH
SPEED HUB MOTOR KIT |
ONE
SET OF MOTOR KIT COMES WITH THE FOLLOWING: |
HIGH
SPEED HUB MOTOR KIT * Designed for Recumbent Bicycle and Recumbent Tricycle Manufacturer. * 48V Brushless DC Motor 1000W, 400 and 470 rpm respectively, 30NM torque. * For 16", 20", 24" and 26" wheel Hub Motor. Front or rear installation. * Speed varies from 16 MPH to 27 MPH solely dependent on wheel size used. (USA: 20+ MPH is intended for off road only.) * Range: More than 1 hour running time for 160 lbs rider. * Power Source: 48V -7Ah, 12Ah, or 17Ah Battery. 48V 12Ah battery is ideal. * Motor Efficiency: 87% ~ 95% * Motor Size: 7 1/2" dia., 3" wide, 6" L x 7/16" dia. shaft. Wt. 5.4kg. * Front hub dimension can mount in most normal fork, rear hub motor with whorl accommodation for 7 speed gears. * Unique patented direct drive system for reliable operation in the water, rain, snow or mud. * Excellent acceleration with strong torque. * Free wheeling feature eliminates drag and friction when pedaling or coasting when the motor is off. * Hub motor does not need maintenance as it is fully sealed at the factory. * Very powerful motor with 10 degrees climbing ability * Handle bar mounted thumb or twist grip throttle with variable speed control. * Full one year warranty. PRICE: $600.00 / Motor , plus $75 for controller |
 |
Scooter, Moped Electric Hub Wheels 24 Volts Or 36 Volts, With Controller Included Call For Quote! |
 |
Dual Wheel Assembly 36 Volts Or 48 Volts, With Controller Included Call For Quote! |
 |

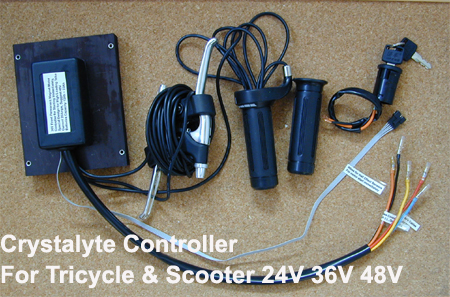

Controller
